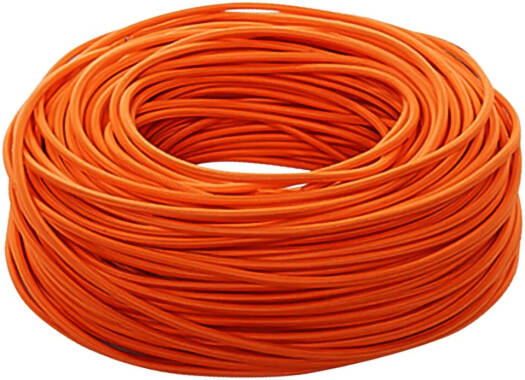

Introducing the Dahua PFM922I-6UN-C UTP CAT6 Cable, a high-performance networking solution designed to meet the rigorous demands of modern data transmission. This 305-meter (1000 feet) cable is engineered with precision and quality, ensuring reliable connectivity for various applications.

Key Features:

• High-Quality Construction: The cable features a Copper-Clad Aluminum (CCA) conductor with a copper content ranging from 22% to 31%, providing a balance between performance and cost-effectiveness.

  dahuasecurity.com

• Robust Insulation: Utilizing High-Density Polyethylene (HDPE) insulation with a thickness of 0.21 mm and a diameter of 1.02 mm ± 0.06 mm, the cable ensures excellent signal integrity and minimal interference.

  dahuasecurity.com

• Durable Sheath: Encased in a customized Polyvinyl Chloride (PVC) outer sheath with a minimum average thickness of 0.5 mm and an overall diameter of 6.5 mm ± 0.3 mm, the cable offers enhanced protection against environmental factors.

  dahuasecurity.com

• Flame Retardant: The PVC outer sheath meets the CE CPR Eca flame retardant class certification, ensuring safety and compliance with international standards.

  dahuasecurity.com

• Optimal Performance: Designed for Power over Ethernet (PoE) applications, the cable supports efficient power and data transmission over a single cable, simplifying installation and reducing costs.

  dahuasecurity.com

Product Description:

The Dahua PFM922I-6UN-C UTP CAT6 Cable is meticulously crafted to deliver superior performance in various networking environments. Its 23 AWG wire gauge and high-quality CCA conductors ensure robust data transmission, while the HDPE insulation and PE separator maintain signal clarity by minimizing crosstalk and interference. The durable PVC outer sheath not only provides physical protection but also meets stringent flame retardant standards, making it suitable for both residential and commercial installations. Whether you're setting up a new network or upgrading an existing infrastructure, this cable offers the reliability and efficiency required for high-speed data applications.

What's Inside the Box:

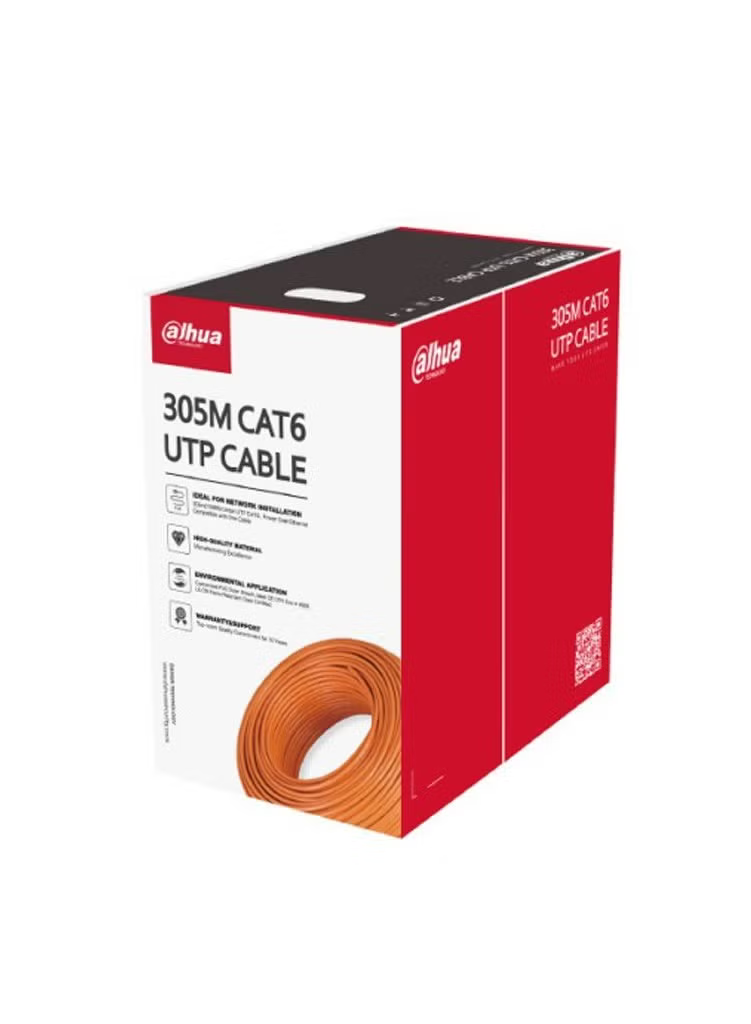

• 305 meters (1000 feet) of Dahua PFM922I-6UN-C UTP CAT6 Cable, neatly packaged for easy deployment.

Technical Specifications:

• Conductor Material: Copper-Clad Aluminum (CCA)

• Copper Content: 22%–31%

• Conductor Diameter: 0.57 mm ± 0.01 mm

• Wire Gauge: 23 AWG

• Insulation Material: High-Density Polyethylene (HDPE)

• Insulation Thickness: 0.21 mm

• Insulation Diameter: 1.02 mm ± 0.06 mm

• Insulation Colors: Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown

• Separator Material: Polyethylene (PE)

• Separator Dimensions: Translucent 4.5 mm × 0.4 mm

• Rip Cord Material: Polyester

• Rip Cord Specification: 500D

• Sheath Material: Polyvinyl Chloride (PVC)

• Sheath Thickness: 0.5 mm

• Sheath Diameter: 6.5 mm ± 0.3 mm

• Sheath Color: Orange

• Max. DC Resistance of a Single Conductor: 11.5 Ω/100 m

• Min. Insulation Resistance: 5000 MΩ·km

• Operating Temperature: –20°C to +60°C (–4°F to 140°F)

• Installation Temperature: 0°C to +50°C (32°F to 122°F)

• Storage Temperature and Humidity: –10°C to +40°C (14°F to 104°F), <60% RH

• Packaging Dimensions: 390 mm x 390 mm x 247 mm (15.37″ x 15.37″ x 9.73″)

• Net Weight: ≥9.2 kg (20.28 lb)

• Gross Weight: ≥10.2 kg (22.49 lb)
